QCI P3

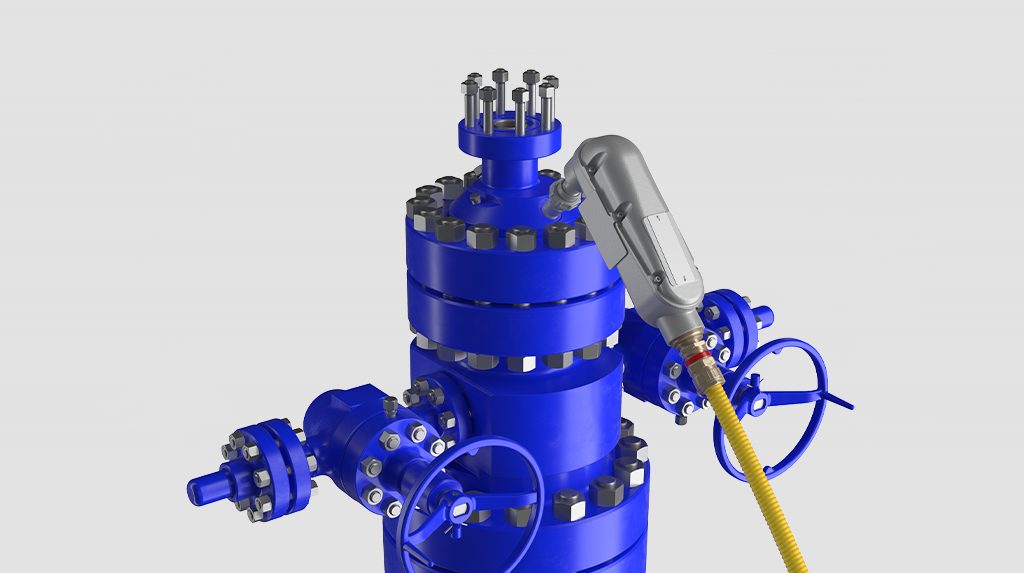

The QCI P3 is a single-mandrel, field-installed, 1-3/4” diameter penetrator system that can be installed on either round or flat (2F) ESP cable.
It supports a full range of ESP cable sizes, including #6, #4, #2, and several #1 cables, in both leaded and non-leaded styles.
The QCI P3 penetrator system is unique in that it offers direct feed-through of the pump cable to the surface without requiring any splices or downhole connections. Once on the surface, the downhole pump cable is connected to the surface cable within the QCI conduit box, available in Class 1, Division 1 and Class 1, Division 2 configurations. Surface cable is also available to complete the run to either a junction box or directly to the ESP controller.
The QCI P3 system is rated and certified to 5,000 psi API WP and is a direct feed-through. The maximum rating for voltage and amperage depends on the pump cable. The QCI P3 system is offered with FM, CSA, ATEX, and IECEx certifications to support worldwide installations.
Features
- ESP cable runs continuous through wellhead – eliminating the need for a cable splice.
- A slim feed-through of 1.75” OD designed to eliminate large mandrel type penetrators.
- Available for flat or round cable.
