Engineered for efficiency, safety, and adaptability—delivering seamless flow while minimizing friction, erosion, and environmental impact.
With the continued push towards optimization and efficiency in frac technology, our customers challenged us to develop new ways to manage their completions. Great North’s Multi-Well Frac Connector system allows a continuous flow loop that reduces downtime during operations and reduces the number of connectors, thereby reducing risk to the field staff on site. The constant flow also reduces environmental impact by not needing methanol during winter operations, or vac-trucks for truckline cleanout flushes.
Features
- Reduces logistical costs by 50%
- Adaptable to any well space or configuration
- Single, Dual or Triple-rung design works with any desired pump rate
- Eliminates all high potential erosion areas and bending moment stresses
- Rig Up and Rig Out in 50% of the time it takes using competing equipment
- Reduces number of rental valves required, which leads to lower redress and repair bills
- MWFC and Frac Trees pressure tested and ready before pumping company arrives on location
- All connections in the MWFC spread are Metal-to-Metal API 6A Flanged connections, no hammers or pipe restraints required
- The continuous flow also reduces environmental impact by not needing methanol during winter operations, or vac-trucks for truckline cleanout flushes
- No more “fracing against” closed valves, instead “fracing past” valves. All valves incorporated into the frac tree reduces the number of total valves required
High-capacity, innovative solution ensuring precise, efficient, and safe frac ball deployment with uninterrupted operations.
Great North’s Conveyor Frac Ball Launching System’s unique patented design offers an innovative frac ball launching solution for any scenario. Our specifically designed “Dry System” protects the launcher, consisting of Lexan-style doors, which also enables our technicians to maintain a constant visual of each frac ball. The high storage capacity removes the need to shut down and reload while also eliminating the risk of improper frac ball loading.
Features
- 30 frac ball capacity
- Adaptable to any frac pressures up to 15,000 PSI
- Compatible with any material frac bull up to 5"
- Hydraulic brake and conveyor system ensures only one frac ball is launched
- Light weight system
- Compatible with any frac head
- Easily loaded & unloaded without having to depressurize
- Hydraulic Control Remote (HCR) operated gate valves for staging
- Remotely operated well isolation valve to protect against line failures and integrity issues
A compact, inventive solution for precise dart and ball deployment—combining versatility, safety, and efficiency to optimize hybrid frac sleeve programs.

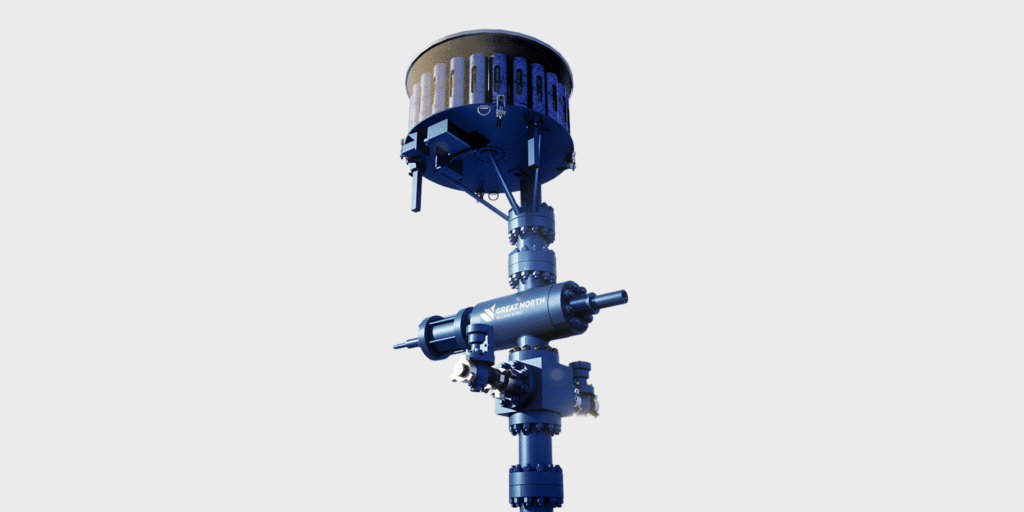

An innovative solution designed for deploying darts for full bore dart activated frac sleeves, the Great North’s Gyro Dart Ball Launcher. Our patented “Dry System” is designed to protect the launcher, which consists of a Lexan protective wall, lid, and a high storage capacity. Our unique design also offers the ability to launch regular frac balls in combination with darts when running a hybrid face sleeve program, eliminating the need to shut down the launcher system.
Features
- 23 dart or ball capacity
- Capable of dart/ball launching up to 5.5" casing
- Hydraulic brake and conveyor system allows only one dart/ball to be launched at a time, eliminating the risk of launching the wrong dart/ball
- Compatible with pressures up to 15,000 PSI
- Easily loaded and unloaded without having to depressurize
- Lexan walls and lid give the ability to maintain constant visual
- Compatible with any frac head style
Our Missile System is designed to bring increased operational efficiencies and safety to operators’ MWFC locations.
Utilizing high-pressure API flanged connections in a modular, large-bore design, the Great North Missile provides faster pad-to-pad transitions with reduced potential for leaks and washouts.
Features
- Field proven high pressure inlet blocking profiling, minimizing erosion
- Unique low pressure fluid delivery method designed by Great North reduces pump cavitation, costly repairs and NPT
- API flanged connections that are torqued to spec, replacing all threaded or clamped connections
- Industry proven large bore check valves replaces up to thirty small bore check valves
- 7-1/16” 15,000 PSI, large bore system capable of meeting customer specified pump rates
- Modular design allows operators to adapt to any frac pad configuration
Offering cost-efficient daily and monthly rentals for a wide range of frac equipment, backed by expert installation, maintenance, and repair services.
Great North carries a comprehensive inventory of rental equipment for ball drop, plug and perf, and coil tubing frac operations, and is proud to offer cost-efficient daily and monthly rentals.Trust our team of qualified and experienced personnel to complete all installations, maintenance, and repairs.
Our Rentals Include
- Missile System
- Gyro Dart Launcher
- Conveyor Ball Launcher
- Frac Equipment
- Various valve configurations
Features
- Sizes from 1-13/16″ to 7-1/16″
- Rated working pressures from 2,000 psi to 15,000 psi
- Available with both manual and hydraulic functioning valves
