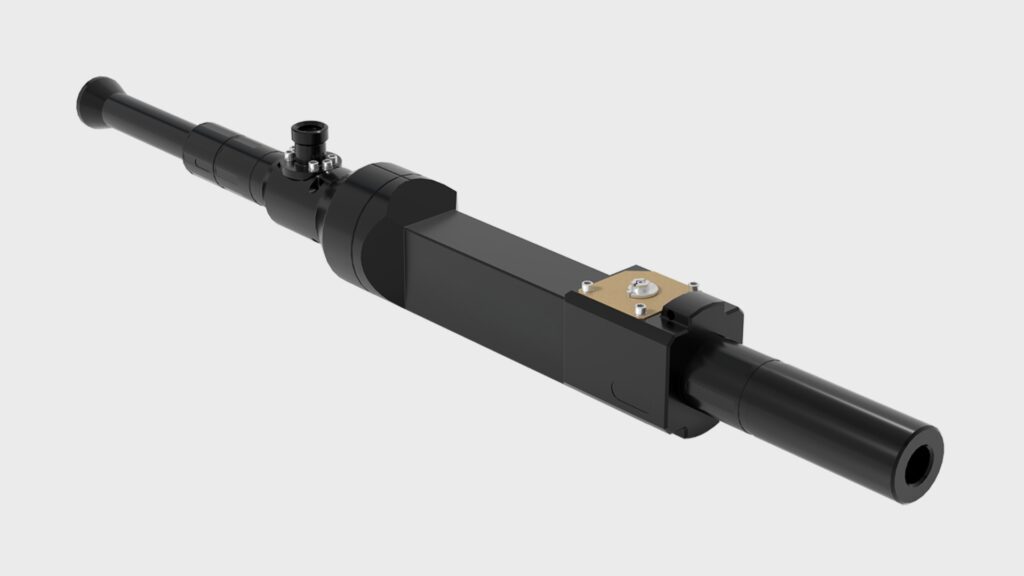

EZ Dinghy™ Dart Launcher
Innovex’s in-house engineered EZ Dinghy™ Dart Launcher cement head is the fastest and safest way to launch cementing darts/plugs and foam/solid balls. A simpler, faster, and safer alternative to circulating iron manifolds. The EZ DINGHY™ Dart Launcher features a quick-casing-connect adapter to adapt to the drill pipe, tubing, or casing being used. A super double compact dinghy that is super EZ to use.
Features
- Available in single and double configurations.
- Easy plug launch with a single valve 90-degree rotation.
- Ideal for DWC operations where a quick transition from casing running to cementing is required.
EZ Dinghy™ Dart Launcher
BACH™ Cement Head
The BACH™ Production Casing Cement Head improves operational safety and reliability when launching cement plugs during production casing cementing and/or pressure testing operations. The same head works for 5.00, 5-1/2 and 6.00 inch production casing (at surface).
Features
- SPEED LOK™ connection, a quick connect adapter that eliminates threading or hammering – easy 360° orientation.
- Plug-and-play configuration.
- Mechanical plug launch indicator below the FOSV.
BACH™ Cement Head
MAN-O-WAR™ Top Drive Cement Head
The in-house engineered MAN-O-WAR™ Top Drive Cement Head is the most modernized and optimized way to launch cementing darts/plugs and foam/solid balls. Designed to be a reliable, simple, and safer alternative to your typical top drive cement heads and circulating iron manifolds. Rated to an INDUSTRY FIRST combined simultaneous load of 10,000 psi at 2,000,000 lbf tensile with 110,000 ft-lb applied torque.
Features
- Adaptable pin connector facilitates quick and hassle-free field redressing of the bottom connection to accommodate any drill pipe-specific connection/sizes.
- 5.63-inch chamber I.D. and 5.75-inch chamber I.D. mitigate the compression set of darts prior to the job.
- Modular design: add or remove chambers to accommodate additional plugs or balls, or for extended-length plugs.
MAN-O-WAR™ Top Drive Cement Head
