Tension Tubing Hanger
The patent pending Innovex Tension Tubing Hanger features an integral ¼” control line that safeguards against the fitting breaking away and causing unplanned NPT and associated costs of pulling and redeploying the tubing string.
The Hanger is designed to establish tubing tension operating through the BOP for well control and the self-aligning engagement slot ensures the string won’t drop.
Tension Tubing Hanger
Hanger Completions
While we are known for our leading and most reliable ESP penetrator, we also stock a full line of 7-1/16” 3,000 psi to 15,000 psi wellhead completion solutions
These systems feature our leading slim P3000-2 penetrator system and can be used with 2-3/8”, 2-7/8”, and 3-1/2” tubing inside the 7-1/16” bowl profile with suitable sized production casing. We can also supply 11” completions, along with GT-6, and hammer nut completions for use with our penetrator.
ESP Hanger & Adapter with P3000-2 Penetrator
ESP Hanger and Adapter completions offer the most control and versatility. The adapter allows for testing the flange void after make-up. This ensures all sealing components are holding. With a spin flange on the bottom and an orientation flange on top, pump cable alignment and flow line orientation can be achieved with great ease. All hangers come ported to accommodate up to 1/2” capillary line, if required.
ESP Hanger with Cover Plate and P3000-2 Penetrator
The Cover Plate system offers the same capabilities as the hanger completion with a 3,000 psi secondary seal for both environmental and well control. The cover plate protects both the ring groove and lock screws to ensure future rework can be accomplished without issues. The P3000-2 system can be used with 2-3/8”, 2-7/8”, and 3-1/2” tubing inside the 7-1/16” bowl profile.
ESP Hanger Completion with P3000-2 Penetrator
Hanger completions offer a cost-effective solution while maintaining well control through a BOP during installation. Hangers are available with, and without, Type H BPV threads to serve your SOP requirements. A short nipple is used to make up a threaded Christmas tree or a companion flange that can adapt to a flanged tree.
Adapters

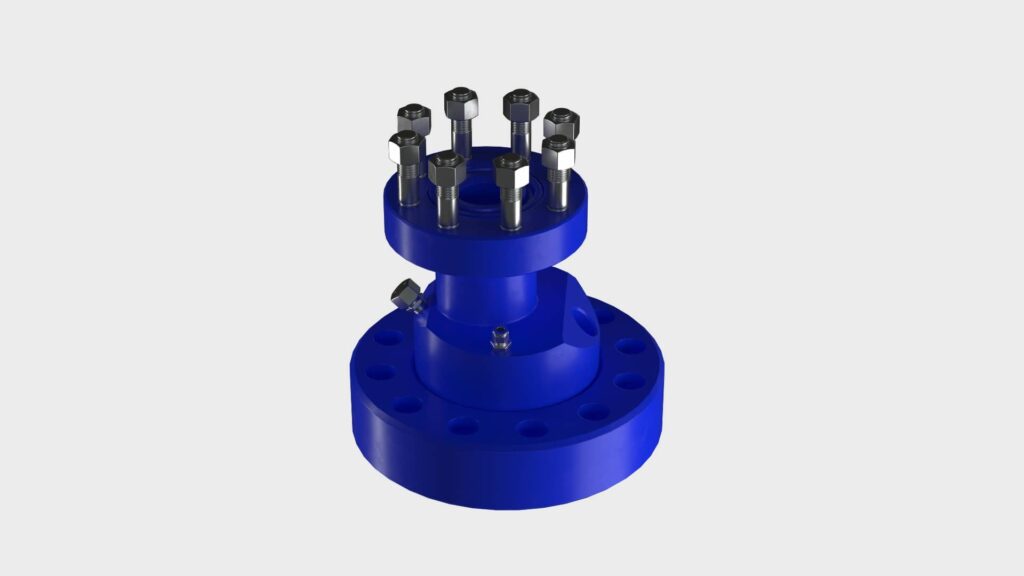

Innovex offers a range of adapters designed to ensure our ESP hanger and adapter solutions offer the most control and versatility when converting a well.
API Flange make-up allows for flange void test to confirm all seals are intact and the lower rotation flange ensures a secure tubing spool connection regardless of hanger’s orientation. The top rotation flange allows tree flowline in any direction, and all hangers & adapters come with a capillary line porting as standard.
7-1/16″ adapter in stock, rated for: 3,000, 5,000, 10,000 or 15,000 psi applications with systems in stock to support 2-3/8”, 2-7/8” and 4-1/2” tubing ESP completions.
Our adapters ensure all components are sealed and will connect securely to the tubing spool regardless of the hanger’s orientation. Top orientation flanges ensure minimal change to existing flow lines as well as allow for use of original flow back trees providing for efficient operations at the well site.
Adapters
Cover Plates
The cover plate is placed over an extended neck of the hanger and matches the flange diameter of the tubing spool’s top flange.
The cover plate protects both the ring groove and lock-screws to ensure future rework can be accomplished without issues. We offer both steel and rubber cover plate solutions to protect the tubing spool from the elements and complete the well.
Steel Cover Plate
These cover plates provide an additional barrier of protection from the elements with a seal around the neck of the hanger and in the ring groove of the tubing spool. These seals protect the hanger and tubing spool from corrosion and provide a secondary seal for the tubing hangers body seals.
Rubber Cover Plate
Rubber cover plates are a simple solution to top the well and protect it from the elements and are offered in 7-1/16” 5,000 and 10,000 flange diameters.
Water Source Well Adapters <
Water source wells are typically shallower than production wells and do not need the same protection from downhole pressures and frac operations. To meet this need, Innovex offers QCI ESP wellhead solutions specifically designed for water source wells.
These cost-effective solutions provide improved reliability, safety, and performance over traditional packoff systems. Lower cost threaded wellheads offer savings over flanged wellhead components and can support 4-1/2” through 13-5/8” production casing sizes.
Solid mandrel hangers replace the traditional packoff completions to eliminate failures associated with sealing on the lead of the ESP pump cable. This ensures the best run life, improves safety, and a NEC code compliant solution. Tubing support is offered in 2-3/8”, 2-7/8”, and 3-1/2”, with options for larger sizes. Most hangers are stocked with a 3/8” port to support common 3/8” and 1/4″ capillary lines. Additional ports can be added to meet your specific requirements.
The P3000-2 penetrator solution is used to provide the highest reliability on the market with its patented cable seal technology. A local conduit box provides direct access to trouble shooting downhole challenges and eliminates the need for a junction box. The P3000-2 system is offered with FM, CSA, ATEX, and IECEx third party certifications to ensure reliability and local code compliance.
