QCI P5

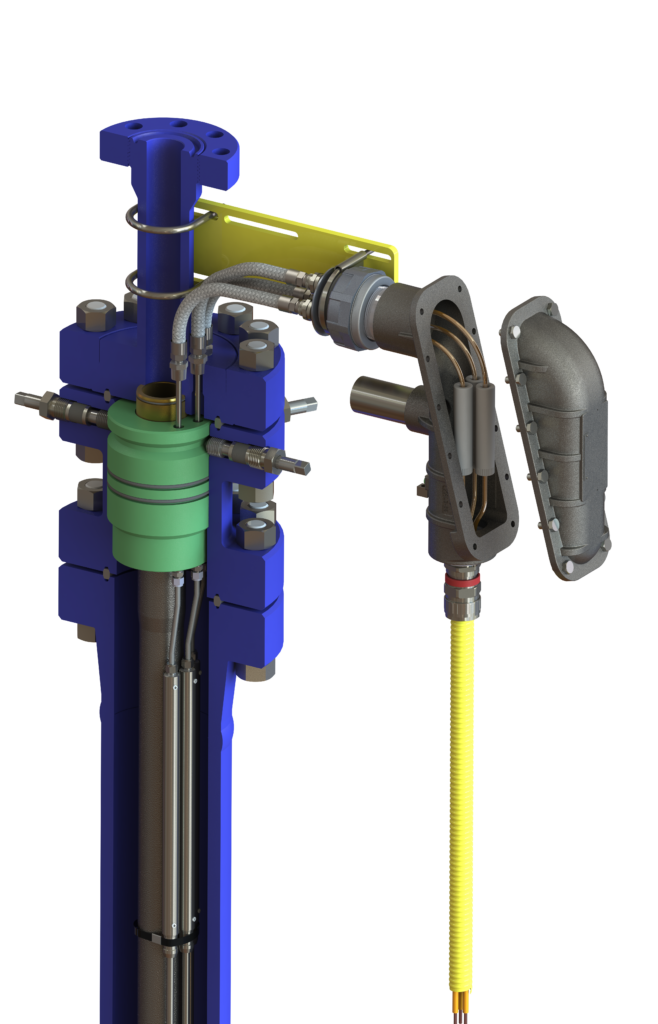

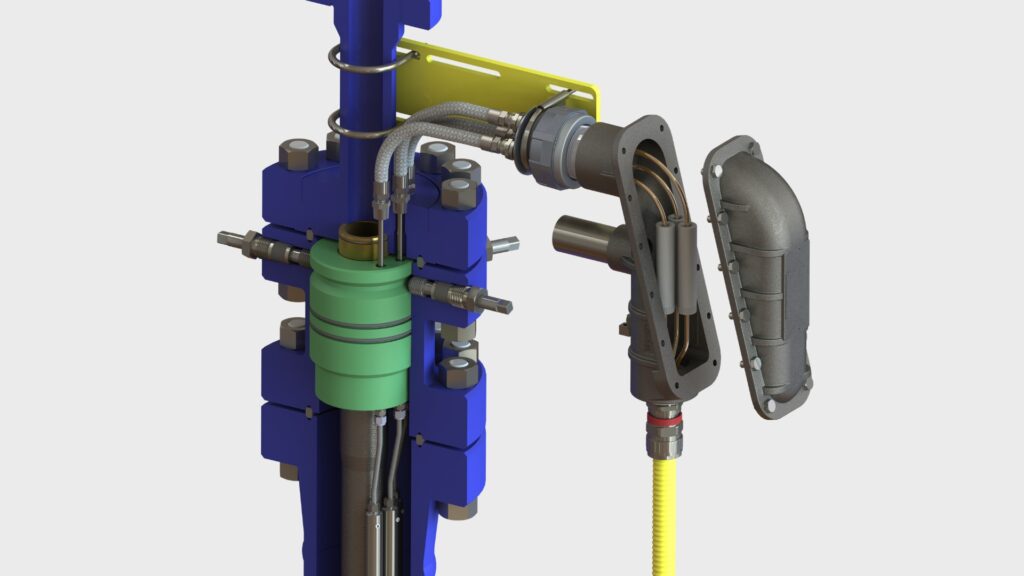

The QCI P5 Surface Penetrator redefined ESP penetrators and continues to deliver reliability and performance worldwide.
Its “3-legged design” isolates each conductor in separate tubes with metal-to-metal sealing and robust connections for the ESP cable.
The QCI P5’s simple approach and design make it a great solution for installing an ESP on an existing well and for new installations requiring a concentric wellhead of multiple ESPs in the well.
The 10K psi rating option offers protection against offset fracking, eliminates cable splices in the wellbore, and can be retrofitted to fit non-ESP wellheads.
The QCI P5-SL (Slim Line) Surface Penetrator offers the unique design and capabilities of the QCI P5 in a smaller connection size. Its 7/8” O.D. connection allows ESPs to be utilized in tight well applications along with coiled tubing and wireline deployed ESPs.
Features
- Eliminates cable splices in the wellbore.
- Able to retrofit to non-ESP wellheads.
- Adaptable to concentric wellhead completions and wells with limited annular space.
